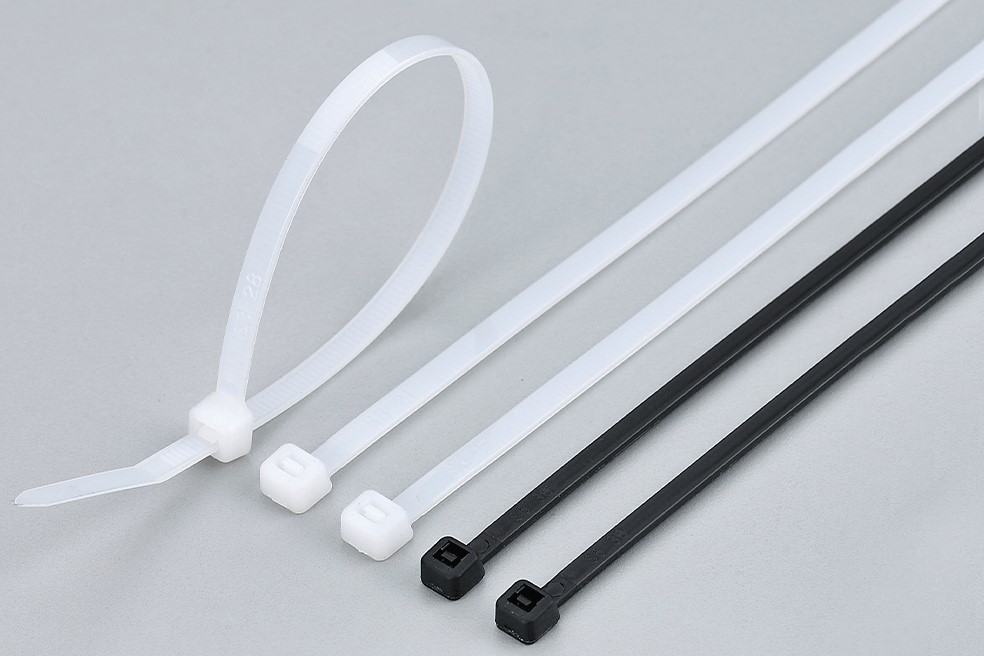

Nylon cable ties

Name: Nylon cable ties
Brand: AGSPLAST

You are here:

AGSPLAST cable ties are perfect for use in cabling across all sectors. Made from PA 6.6, they are ideal for grouping and directing cables and wires of various sizes.

REQUEST A FREE SAMPLE PRICE AND AVAILABILITY

Can't find the right size? Let us design it

Features

Nylon cable ties:

- Material: PA 6.6
- Standard colours: Natural, Black
  - Other colours available upon request
- Self-extinguishing PA 6.6: V2 (UL94)

Working temperature:
- PA 6.6: -35°C ÷ +85°C

PRODUCT VARIANTS

NATURAL PART CODE	BLACK PART CODE	A (mm)	B (mm)	Max diameter (mm)	Min opening load (kg)	PACKAGING
7001AA00	7001AA01	80	2.5	16	6	100
7002AA00	7002AA01	100	2.5	22.0	6.0	100
7003AA00	7003AA01	120	2.5	30.0	6.0	100
7004AA00	7004AA01	150	2.5	36.0	6.0	100
7005AA00	7005AA01	200	2.5	52.0	6.0	100
7006AA00	7006AA01	100	3.6	22.0	18.1	100
7007AA00	7007AA01	120	3.6	30.0	18.1	100
7008AA00	7008AA01	150	3.6	36	18.1	100
7009AA00	7009AA01	200	3.6	52.0	18.1	100
7010AA00	7010AA01	250	3.6	65.0	18.1	100
7011AA00	7011AA01	300	3.6	80.0	18.1	100
7012AA00	7012AA01	350	3.6	95.0	18.1	100
7013AA00	7013AA01	370	3.6	100.0	18.1	100
7014AA00	7014AA01	400	3.6	110.0	18.1	100
7015AA00	7015AA01	450	3.6	125.0	18.1	100
7016AA00	7016AA01	500	3.6	140.0	18.1	100
7017AA00	7017AA01	150	4.8	36.0	22.1	100
7018AA00	7018AA01	200	4.8	52.0	22.1	100
7019AA00	7019AA01	250	4.8	65.0	22.1	100
7020AA00	7020AA01	300	4.8	80.0	22.1	100
7021AA00	7021AA01	350	4.8	95.0	22.1	100
7022AA00	7022AA01	370	4.8	102.0	22.1	100
7023AA00	7023AA01	400	4.8	110.0	22.1	100
7024AA00	7024AA01	450	4.8	125.0	22.1	100
7025AA00	7025AA01	500	4.8	140.0	22.1	100
7026AA00	7026AA01	650	4.8	190.0	22.1	100
7027AA00	7027AA01	200	7.6	52.0	55.1	100
7028AA00	7028AA01	250	7.6	65.0	55.1	100
7029AA00	7029AA01	300	7.6	80.0	55.1	100
7030AA00	7030AA01	350	7.6	95.0	55.1	100
7031AA00	7031AA01	380	7.6	102.0	55.1	100
7032AA00	7032AA01	400	7.6	110.0	55.1	100
7033AA00	7033AA01	450	7.6	125.0	55.1	100
7034AA00	7034AA01	500	7.6	135.0	55.1	100
7035AA00	7035AA01	550	7.6	160.0	55.1	100
7036AA00	7036AA01	400	10.0	105.0	80.1	100
7037AA00	7037AA01	450	10.0	120.0	80.1	100
7038AA00	7038AA01	500	10.0	145.0	80.1	100
7039AA00	7039AA01	650	10.0	190.1	80.1	100
7040AA00	7040AA01	720	10.0	210.0	80.1	100
7041AA00	7041AA01	760	10.0	225.0	80.1	100
7042AA00	7042AA01	800	10.0	235.0	80.1	100
7043AA00	7043AA01	1000	10.0	295.0	80.1	100
7044AA00	7044AA01	1200	10.0	340.0	80.1	100
7045AA00	7045AA01	650	12.0	190.0	114.1	100
7046AA00	7046AA01	760	12.0	225.0	114.1	100

NATURAL PART CODE	7001AA00
BLACK PART CODE	7001AA01
A (mm)	80
B (mm)	2.5
Max diameter (mm)	16
Min opening load (kg)	6
PACKAGING	100

NATURAL PART CODE	7002AA00
BLACK PART CODE	7002AA01
A (mm)	100
B (mm)	2.5
Max diameter (mm)	22.0
Min opening load (kg)	6.0
PACKAGING	100

NATURAL PART CODE	7003AA00
BLACK PART CODE	7003AA01
A (mm)	120
B (mm)	2.5
Max diameter (mm)	30.0
Min opening load (kg)	6.0
PACKAGING	100

NATURAL PART CODE	7004AA00
BLACK PART CODE	7004AA01
A (mm)	150
B (mm)	2.5
Max diameter (mm)	36.0
Min opening load (kg)	6.0
PACKAGING	100

NATURAL PART CODE	7005AA00
BLACK PART CODE	7005AA01
A (mm)	200
B (mm)	2.5
Max diameter (mm)	52.0
Min opening load (kg)	6.0
PACKAGING	100

NATURAL PART CODE	7006AA00
BLACK PART CODE	7006AA01
A (mm)	100
B (mm)	3.6
Max diameter (mm)	22.0
Min opening load (kg)	18.1
PACKAGING	100

NATURAL PART CODE	7007AA00
BLACK PART CODE	7007AA01
A (mm)	120
B (mm)	3.6
Max diameter (mm)	30.0
Min opening load (kg)	18.1
PACKAGING	100

NATURAL PART CODE	7008AA00
BLACK PART CODE	7008AA01
A (mm)	150
B (mm)	3.6
Max diameter (mm)	36
Min opening load (kg)	18.1
PACKAGING	100

NATURAL PART CODE	7009AA00
BLACK PART CODE	7009AA01
A (mm)	200
B (mm)	3.6
Max diameter (mm)	52.0
Min opening load (kg)	18.1
PACKAGING	100

NATURAL PART CODE	7010AA00
BLACK PART CODE	7010AA01
A (mm)	250
B (mm)	3.6
Max diameter (mm)	65.0
Min opening load (kg)	18.1
PACKAGING	100

NATURAL PART CODE	7011AA00
BLACK PART CODE	7011AA01
A (mm)	300
B (mm)	3.6
Max diameter (mm)	80.0
Min opening load (kg)	18.1
PACKAGING	100

NATURAL PART CODE	7012AA00
BLACK PART CODE	7012AA01
A (mm)	350
B (mm)	3.6
Max diameter (mm)	95.0
Min opening load (kg)	18.1
PACKAGING	100

NATURAL PART CODE	7013AA00
BLACK PART CODE	7013AA01
A (mm)	370
B (mm)	3.6
Max diameter (mm)	100.0
Min opening load (kg)	18.1
PACKAGING	100

NATURAL PART CODE	7014AA00
BLACK PART CODE	7014AA01
A (mm)	400
B (mm)	3.6
Max diameter (mm)	110.0
Min opening load (kg)	18.1
PACKAGING	100

NATURAL PART CODE	7015AA00
BLACK PART CODE	7015AA01
A (mm)	450
B (mm)	3.6
Max diameter (mm)	125.0
Min opening load (kg)	18.1
PACKAGING	100

NATURAL PART CODE	7016AA00
BLACK PART CODE	7016AA01
A (mm)	500
B (mm)	3.6
Max diameter (mm)	140.0
Min opening load (kg)	18.1
PACKAGING	100

NATURAL PART CODE	7017AA00
BLACK PART CODE	7017AA01
A (mm)	150
B (mm)	4.8
Max diameter (mm)	36.0
Min opening load (kg)	22.1
PACKAGING	100

NATURAL PART CODE	7018AA00
BLACK PART CODE	7018AA01
A (mm)	200
B (mm)	4.8
Max diameter (mm)	52.0
Min opening load (kg)	22.1
PACKAGING	100

NATURAL PART CODE	7019AA00
BLACK PART CODE	7019AA01
A (mm)	250
B (mm)	4.8
Max diameter (mm)	65.0
Min opening load (kg)	22.1
PACKAGING	100

NATURAL PART CODE	7020AA00
BLACK PART CODE	7020AA01
A (mm)	300
B (mm)	4.8
Max diameter (mm)	80.0
Min opening load (kg)	22.1
PACKAGING	100

NATURAL PART CODE	7021AA00
BLACK PART CODE	7021AA01
A (mm)	350
B (mm)	4.8
Max diameter (mm)	95.0
Min opening load (kg)	22.1
PACKAGING	100

NATURAL PART CODE	7022AA00
BLACK PART CODE	7022AA01
A (mm)	370
B (mm)	4.8
Max diameter (mm)	102.0
Min opening load (kg)	22.1
PACKAGING	100

NATURAL PART CODE	7023AA00
BLACK PART CODE	7023AA01
A (mm)	400
B (mm)	4.8
Max diameter (mm)	110.0
Min opening load (kg)	22.1
PACKAGING	100

NATURAL PART CODE	7024AA00
BLACK PART CODE	7024AA01
A (mm)	450
B (mm)	4.8
Max diameter (mm)	125.0
Min opening load (kg)	22.1
PACKAGING	100

NATURAL PART CODE	7025AA00
BLACK PART CODE	7025AA01
A (mm)	500
B (mm)	4.8
Max diameter (mm)	140.0
Min opening load (kg)	22.1
PACKAGING	100

NATURAL PART CODE	7026AA00
BLACK PART CODE	7026AA01
A (mm)	650
B (mm)	4.8
Max diameter (mm)	190.0
Min opening load (kg)	22.1
PACKAGING	100

NATURAL PART CODE	7027AA00
BLACK PART CODE	7027AA01
A (mm)	200
B (mm)	7.6
Max diameter (mm)	52.0
Min opening load (kg)	55.1
PACKAGING	100

NATURAL PART CODE	7028AA00
BLACK PART CODE	7028AA01
A (mm)	250
B (mm)	7.6
Max diameter (mm)	65.0
Min opening load (kg)	55.1
PACKAGING	100

NATURAL PART CODE	7029AA00
BLACK PART CODE	7029AA01
A (mm)	300
B (mm)	7.6
Max diameter (mm)	80.0
Min opening load (kg)	55.1
PACKAGING	100

NATURAL PART CODE	7030AA00
BLACK PART CODE	7030AA01
A (mm)	350
B (mm)	7.6
Max diameter (mm)	95.0
Min opening load (kg)	55.1
PACKAGING	100

NATURAL PART CODE	7031AA00
BLACK PART CODE	7031AA01
A (mm)	380
B (mm)	7.6
Max diameter (mm)	102.0
Min opening load (kg)	55.1
PACKAGING	100

NATURAL PART CODE	7032AA00
BLACK PART CODE	7032AA01
A (mm)	400
B (mm)	7.6
Max diameter (mm)	110.0
Min opening load (kg)	55.1
PACKAGING	100

NATURAL PART CODE	7033AA00
BLACK PART CODE	7033AA01
A (mm)	450
B (mm)	7.6
Max diameter (mm)	125.0
Min opening load (kg)	55.1
PACKAGING	100

NATURAL PART CODE	7034AA00
BLACK PART CODE	7034AA01
A (mm)	500
B (mm)	7.6
Max diameter (mm)	135.0
Min opening load (kg)	55.1
PACKAGING	100

NATURAL PART CODE	7035AA00
BLACK PART CODE	7035AA01
A (mm)	550
B (mm)	7.6
Max diameter (mm)	160.0
Min opening load (kg)	55.1
PACKAGING	100

NATURAL PART CODE	7036AA00
BLACK PART CODE	7036AA01
A (mm)	400
B (mm)	10.0
Max diameter (mm)	105.0
Min opening load (kg)	80.1
PACKAGING	100

NATURAL PART CODE	7037AA00
BLACK PART CODE	7037AA01
A (mm)	450
B (mm)	10.0
Max diameter (mm)	120.0
Min opening load (kg)	80.1
PACKAGING	100

NATURAL PART CODE	7038AA00
BLACK PART CODE	7038AA01
A (mm)	500
B (mm)	10.0
Max diameter (mm)	145.0
Min opening load (kg)	80.1
PACKAGING	100

NATURAL PART CODE	7039AA00
BLACK PART CODE	7039AA01
A (mm)	650
B (mm)	10.0
Max diameter (mm)	190.1
Min opening load (kg)	80.1
PACKAGING	100

NATURAL PART CODE	7040AA00
BLACK PART CODE	7040AA01
A (mm)	720
B (mm)	10.0
Max diameter (mm)	210.0
Min opening load (kg)	80.1
PACKAGING	100

NATURAL PART CODE	7041AA00
BLACK PART CODE	7041AA01
A (mm)	760
B (mm)	10.0
Max diameter (mm)	225.0
Min opening load (kg)	80.1
PACKAGING	100

NATURAL PART CODE	7042AA00
BLACK PART CODE	7042AA01
A (mm)	800
B (mm)	10.0
Max diameter (mm)	235.0
Min opening load (kg)	80.1
PACKAGING	100

NATURAL PART CODE	7043AA00
BLACK PART CODE	7043AA01
A (mm)	1000
B (mm)	10.0
Max diameter (mm)	295.0
Min opening load (kg)	80.1
PACKAGING	100

NATURAL PART CODE	7044AA00
BLACK PART CODE	7044AA01
A (mm)	1200
B (mm)	10.0
Max diameter (mm)	340.0
Min opening load (kg)	80.1
PACKAGING	100

NATURAL PART CODE	7045AA00
BLACK PART CODE	7045AA01
A (mm)	650
B (mm)	12.0
Max diameter (mm)	190.0
Min opening load (kg)	114.1
PACKAGING	100

NATURAL PART CODE	7046AA00
BLACK PART CODE	7046AA01
A (mm)	760
B (mm)	12.0
Max diameter (mm)	225.0
Min opening load (kg)	114.1
PACKAGING	100
